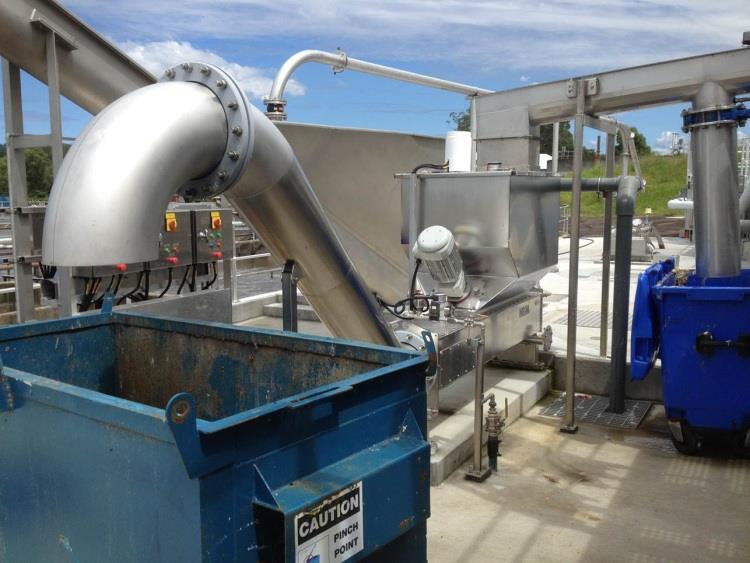

XW Hopper Compactor

Re-uses Water from Screenings Launder to Wash Screenings


Specifically designed for screenings with high water content

MANUFACTURER

MEVA by Nordic Water

APPLICATION

  • Washing and dewatering of wastewater screenings, usually downstream of a launder trough
  • Can be connected onto a screw wash press or screw conveyor

ADVANTAGES

  • re-uses water from the upstream launder trough to wash faecal content from screenings, thereby reducing screenings odour, volume and weight
  • designed specifically for screenigns with a high water content

Wet screenings are fed into the hopper until the right amount of screenings has accumulated. If necessary, additional water is added through a valve placed on the side of the hopper. The agitator thereafter starts and helps break up organic matter with the help of created turbulence.


When the agitator stops, the gate valves on the drainage outlet of the press is opened and water is led out. Simultaneously, the transport screw in the press start and screenings are fed forward. If needed, additional wash water can be added through the wash system of the press.
