Channel Drum Screen

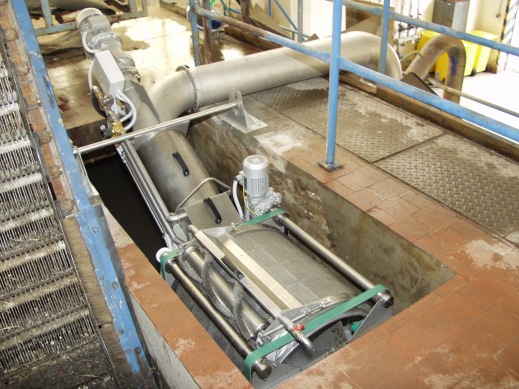

In-Channel Drum Screen
For screening of concentrated wastewater, using a rotating horizontal drum mounted in a concrete channel or stainless steel tank.
MANUFACTURER
In-Eko
APPLICATION
Wastewater inlet works
ADVANTAGES
- low maintenance required
- easy to install
- ability to separate, dewater and compact screenings in a single process
Downloads
Downloads
The IFD is a screen fed from the inside. It consists of a drum, which can be perforated plate or wedgewire, placed in rotation by a drive.
The inlet pipe flows into the inside of the drum, where a flow distribution system spreads the flow inside the drum.
A double washing system cleans and unclogs the screen element. Screenings are then conveyed to the screenings discharge by screw fixed inside the drum.
