Meva Multi Rake Screen with curved bars, MRS C-BAR, is a modified version of Nordic Water Products well-proven Multi Rake Screen (MRS).

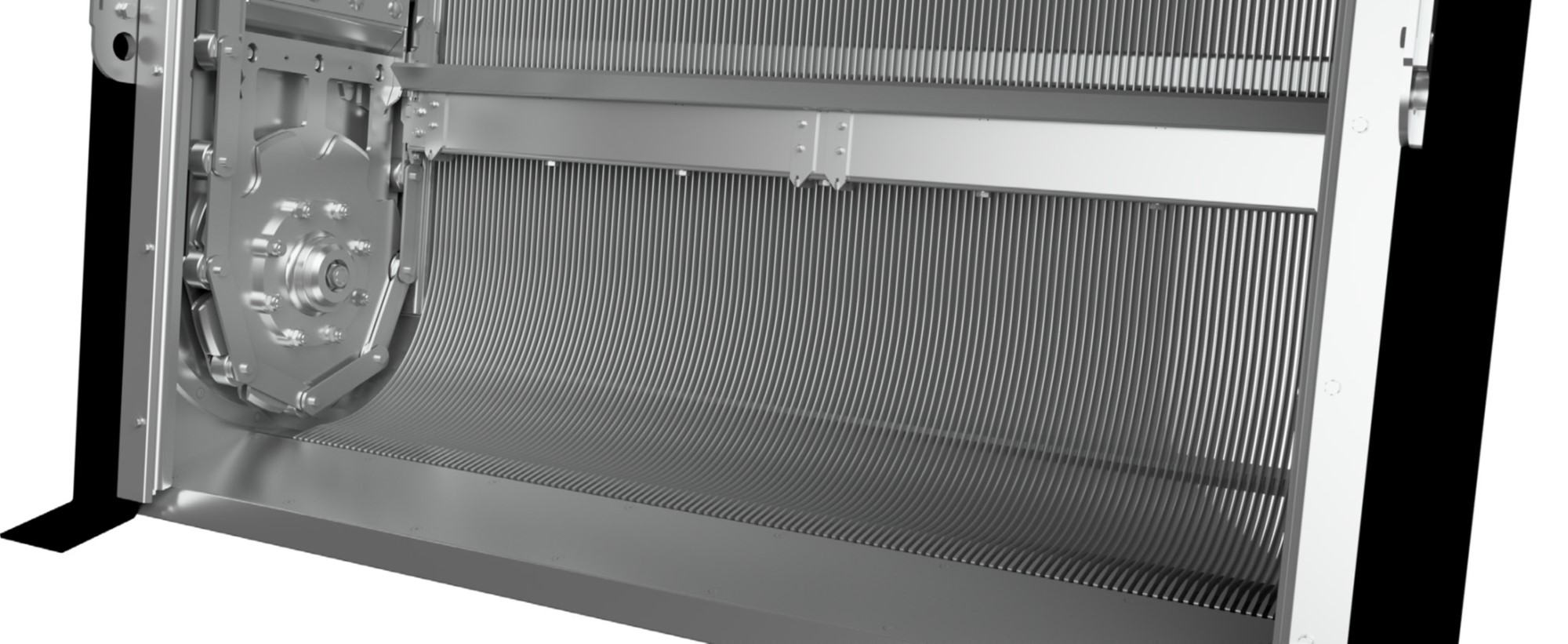

MRS C-BAR is a mechanically cleaned bar screen suitable for inlet works of treatment plants, pumping stations and inlet water structures. The screen captures solid materials which otherwise would be harmful to the downstream process. The bars are curved as a semi-circular profile in the bottom of the screen, compared to a standard MRS that has straight bars.

Due to the design of curved bars, sediment on the bottom plate is removed by the rake and discharged. The low bottom step allows for a larger screenings area. Therefor the MRS C-BAR is suitable for high capacity installations and is not effected by stones and gravels.

Less blinding at the bottom of the screen means the problems of sedimentation are minimized.
Meva MRS C-BAR can be designed to operate either as a coarse screen or as a fine screen, with a slot width 50mm down to 6 mm.
