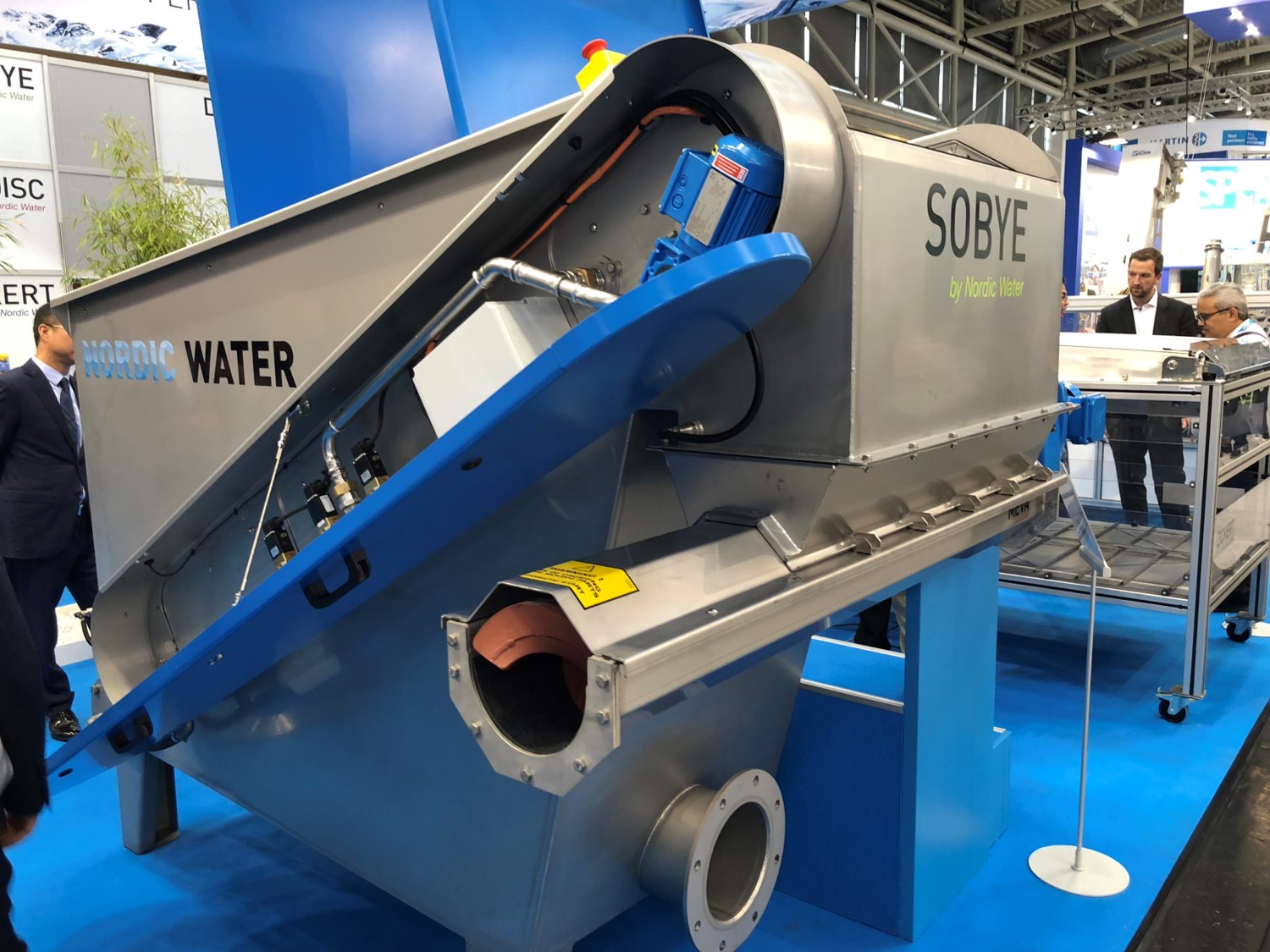

Sobye Filter Screen
Rotating belt filter with self-cleansing filter brush
Pre-filter municipal wastewater, fish aquaculture and other applications
MANUFACTURER
Nordic Water Products
APPLICATION
- Primary treatment for wastewater treatment plants
- Solids removal applications in fish farming
ADVANTAGES
- strong filter belt that can withstand higher head pressures than other rotating belt filters
- Efficiency self-cleansing conducted with a brush - the fabric of other filter belts is generally not strong enough to withstand brush-cleaning
- greatly reduces footprint compared to conventional gravity clarifiers
Downloads
Downloads
Untreated water flows into the system and passes through the filter belt. The belt rotates when the solids mat on the belt becomes thick and increases the water head. The particles are brought to the top of the belt as the belt turns, where they're then dropped onto a screw auger and conveyed from teh system. The belt then passes over a cleaning brush as it is led back towards the incoming water.
